SPIKE TK 1054 mechanical-injection tractor working in a field with a disc harrow

New 73.5 kW 4x4 tractorSPIKE TK 1054 Mechanical injection

Yuchai engine with mechanical injection. 4×4. 170 L tank.

Request a quoteCompare
73.5 kWTo be confirmed
Rated power
4×4
Drive
170 L
Fuel tank

SPIKE TK 1054 with mechanical injection is the version with a 3.9 L four-cylinder Yuchai engine, reinforced axles and planetary final drives. The 12F+12R shuttle transmission, upgraded cab and 50 L/min hydraulics suit farm, forestry and municipal work.

Price
Price on request
Dealer
Ozonteh Impex SRL · +373 60 400 044
Data source
SPIKE catalogue, pages 10–13
Cab
With cab

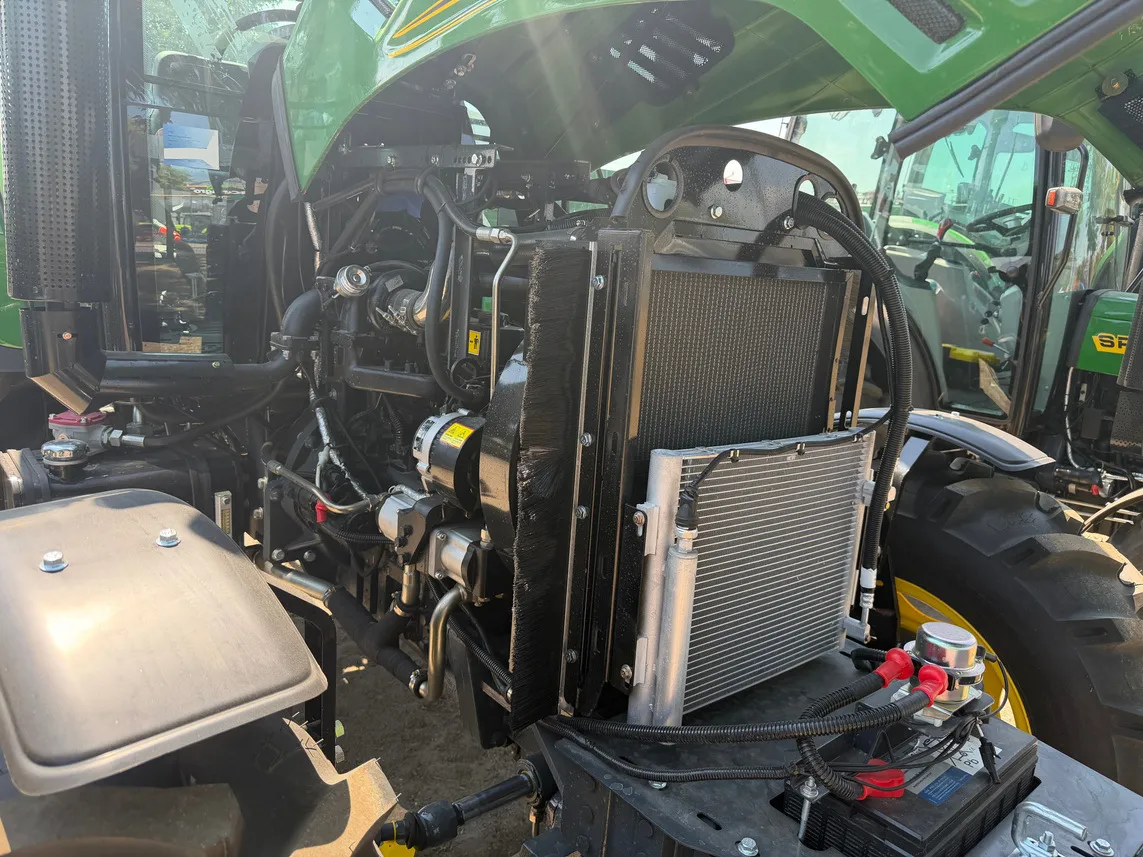

Yuchai engine of the SPIKE TK 1054 with radiator and sealed wiring

Engine

Yuchai with mechanical injection and dry air filter

The 3.9 L four-cylinder Yuchai engine is turbocharged with mechanical injection, giving 73.5 kW at 2,400 rpm. The new dry air filter keeps the intake clean. According to the catalogue, the 170 L tank allows up to 12 hours of work without refuelling.

Disc brakes on the rear wheel of the SPIKE TK 1054

Transmission

12F+12R shuttle, disc brakes

The shuttle reverses direction in one move in any of the 12 gears. The dry twin-plate clutch with dampers handles higher torque, and the disc brakes dissipate heat quickly for smooth braking.

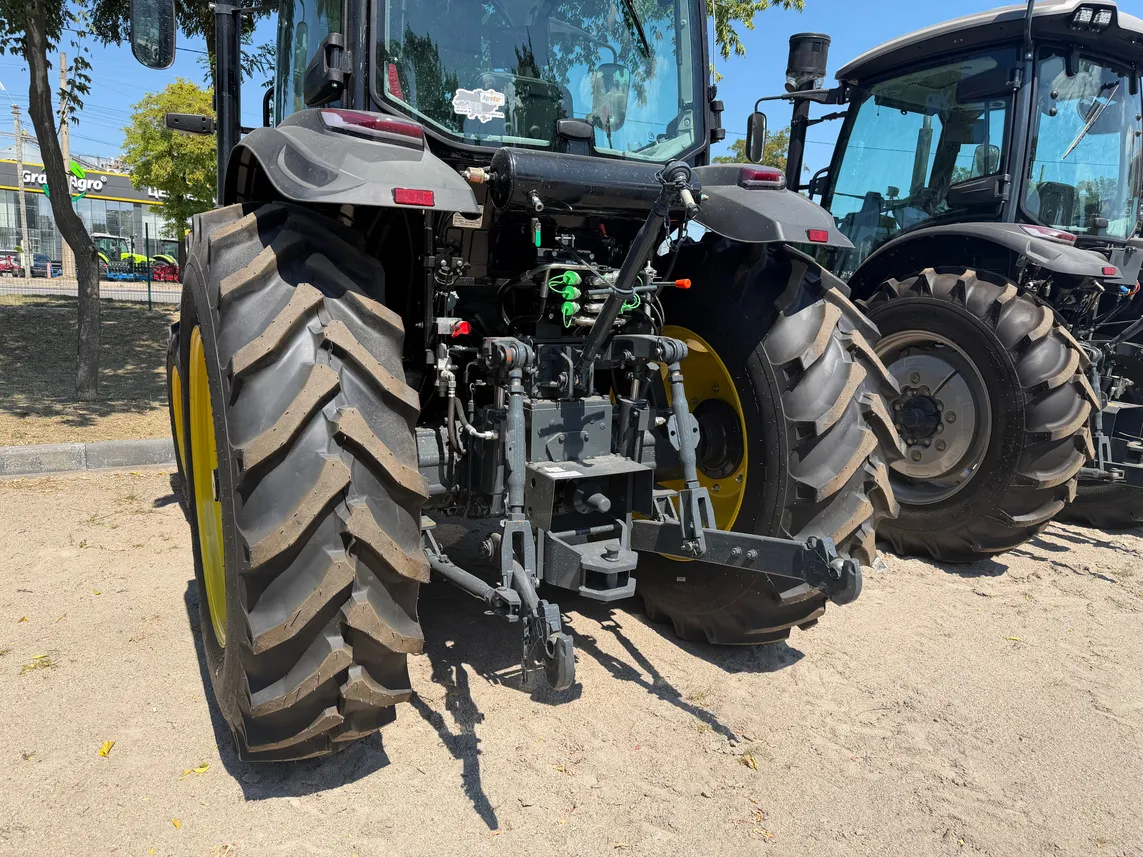

Rear linkage and hydraulic valve block of the SPIKE TK 1054 mechanical injection

Hydraulics

New valve block with four pairs of outlets

The new hydraulic valve block has four pairs of float-capable outlets and two cylinders for the category 2 rear linkage. Hydraulic flow is 50 L/min.

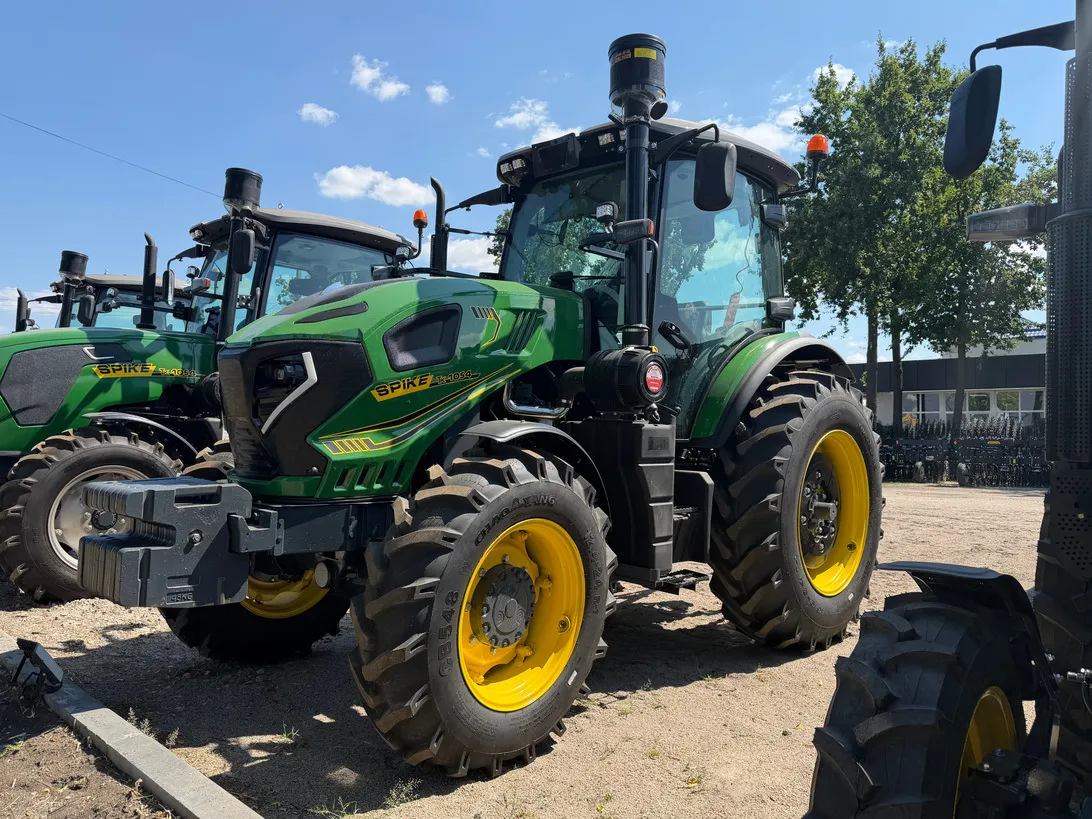

SPIKE TK 1054 mechanical injection: new bonnet and upgraded cab

Cab

New bonnet, upgraded cab

A new bonnet and upgraded cab bring better visibility and improved noise and vibration insulation. An adjustable Grammer seat, multi-vent air conditioning, suspended pedals and an LCD dashboard complete the workplace.

Details

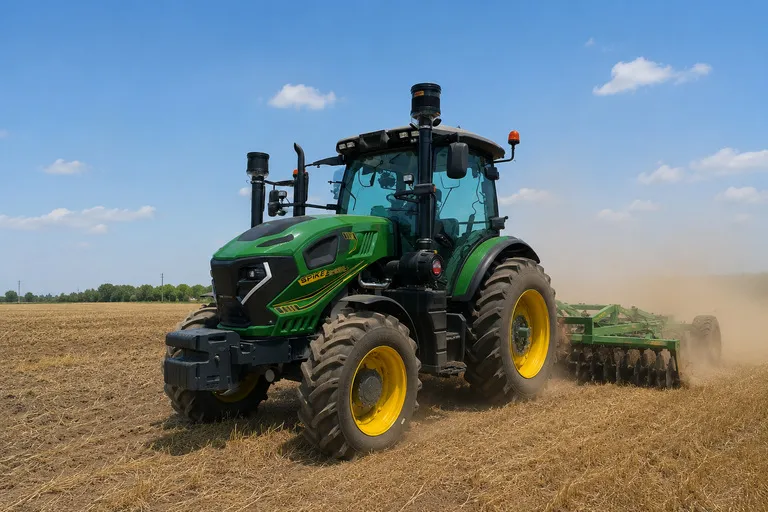

  • SPIKE TK 1054 mechanical-injection tractor in the field

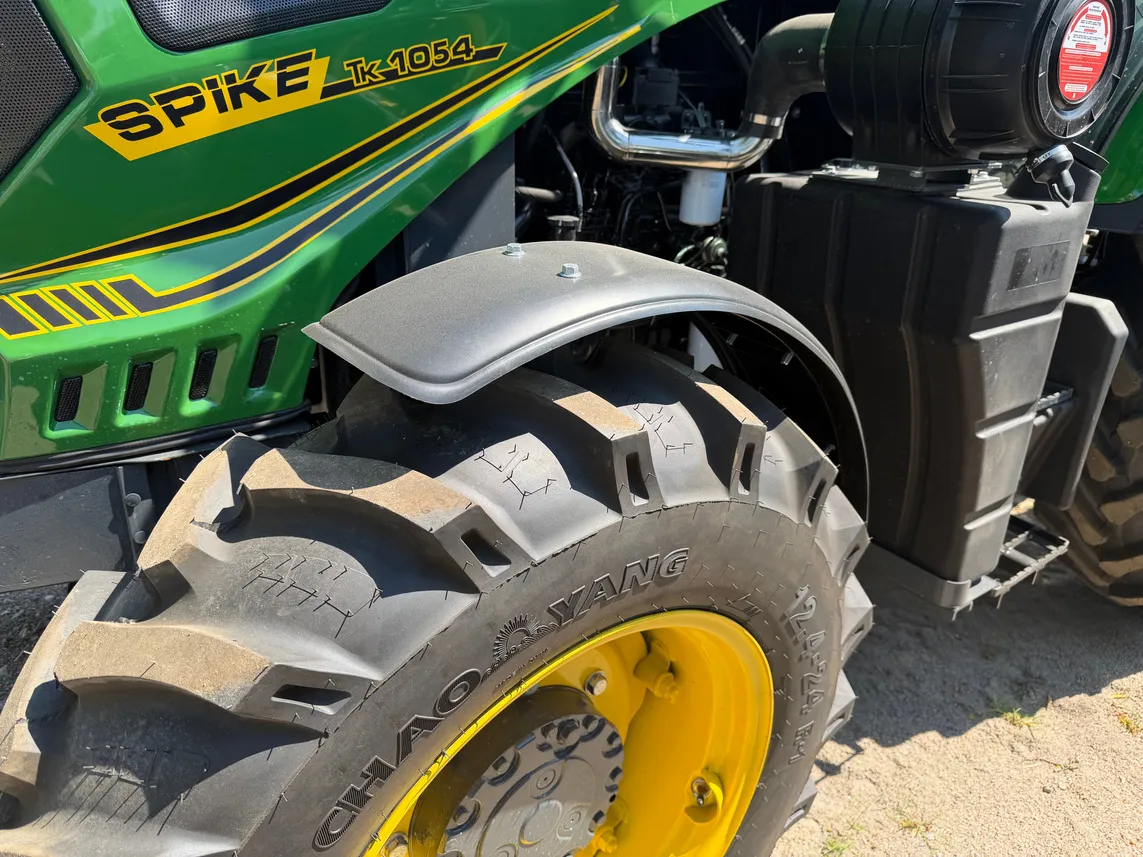

  • Reinforced front axle and yellow-rim wheel of the SPIKE TK 1054

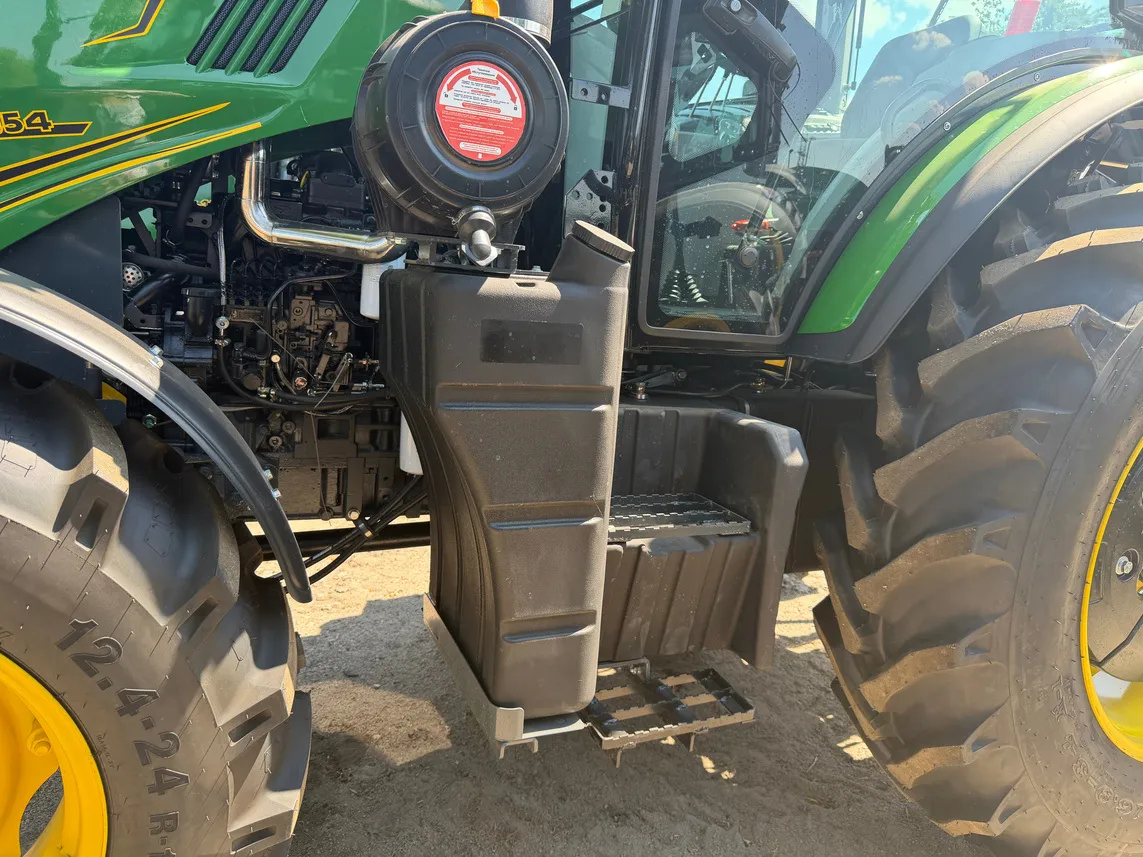

  • 170 L fuel tank of the SPIKE TK 1054 mechanical injection

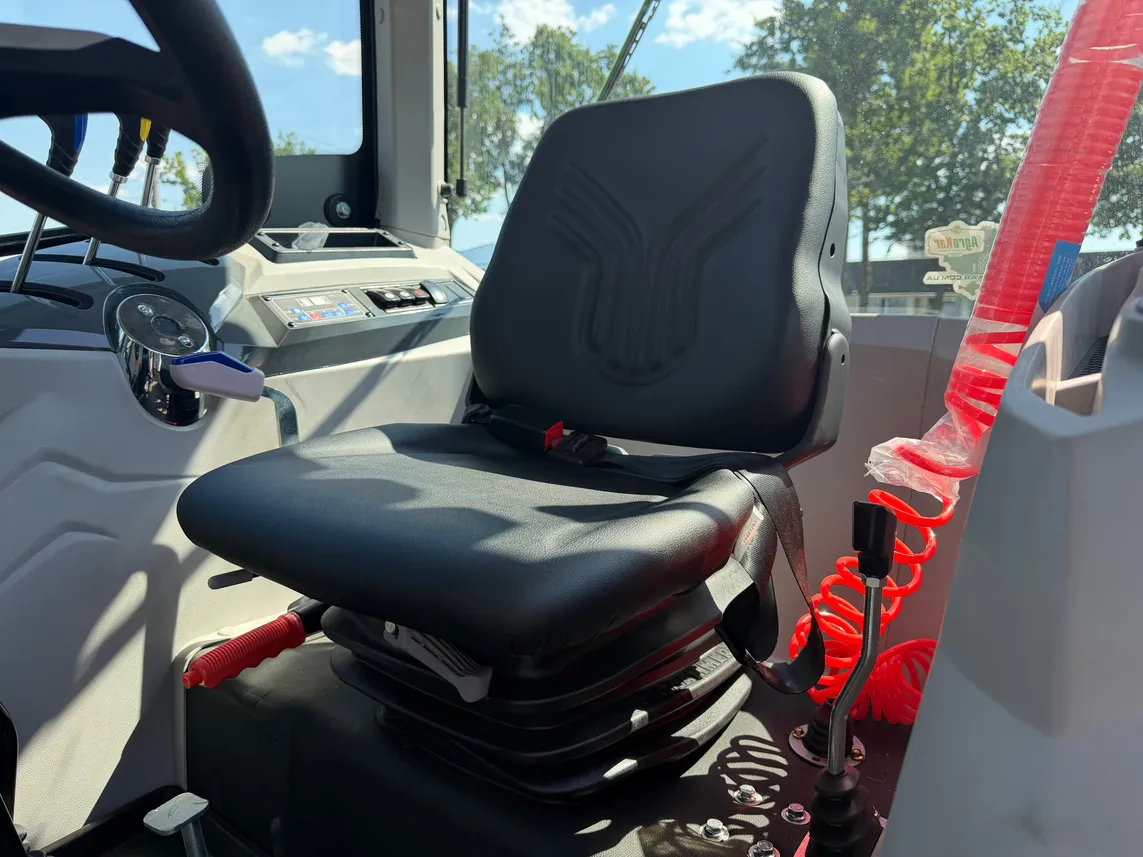

  • Grammer seat in the SPIKE TK 1054 mechanical injection cab

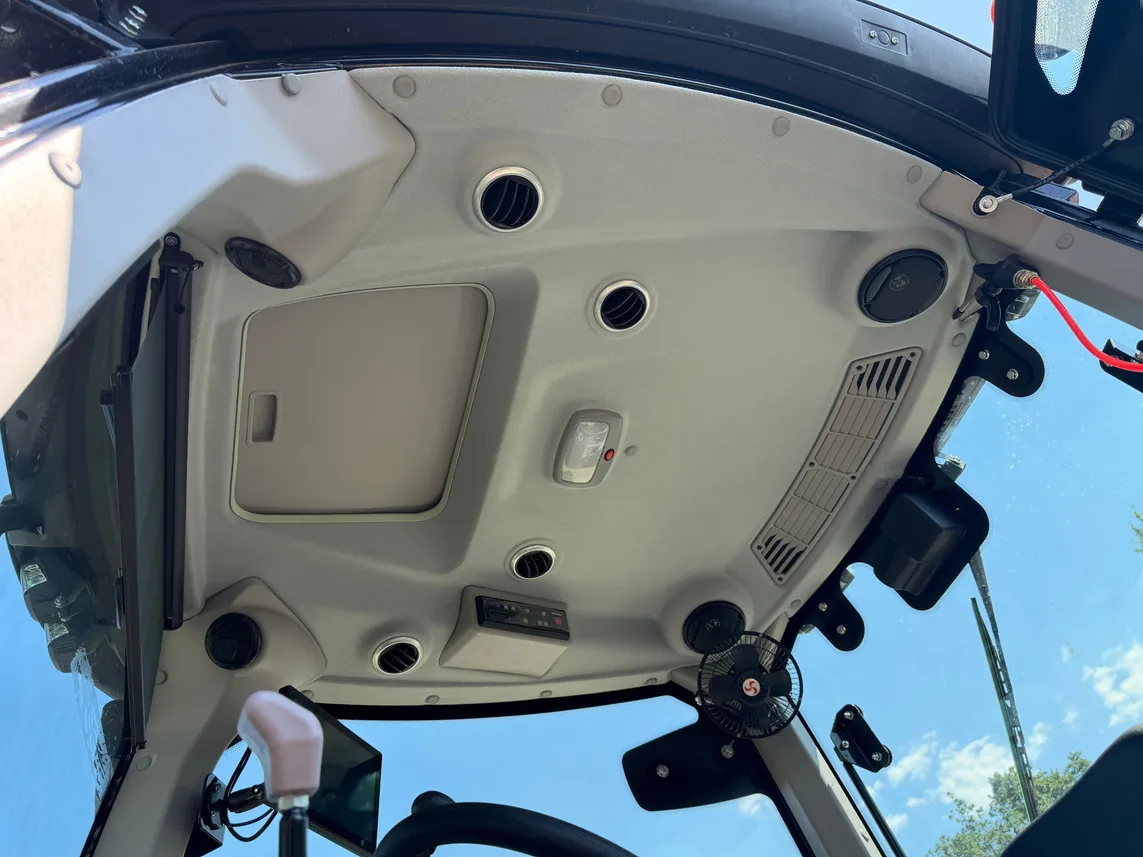

  • SPIKE TK 1054 cab headliner with air-conditioning vents

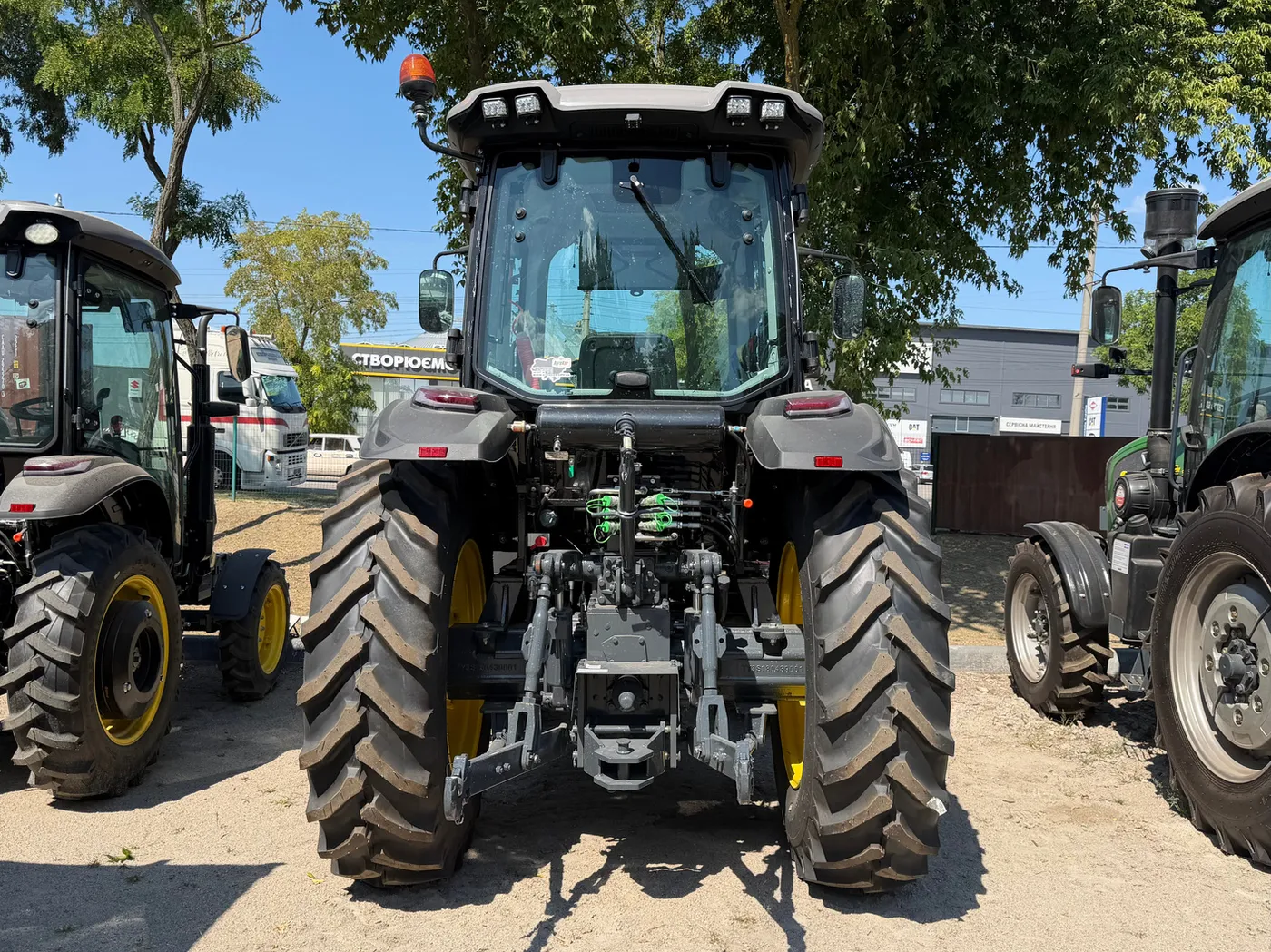

  • SPIKE TK 1054 mechanical injection, rear view among other tractors

Specifications

SPIKE TK 1054 Mechanical injection

Compare with another model
Engine – SPIKE TK 1054 Mechanical injection
PowerTo be confirmed
Rated power73.5 kW
EngineYuchai, inline, water-cooled, turbo, Euro II
Cylinders4
Displacement3.9 L
Fuel systemMechanical injection
AspirationTurbocharger
Rated speed2,400 rpm
Fuel tank170 L
Transmission and drive – SPIKE TK 1054 Mechanical injection
Transmission12F+12R with shuttle
DriveFour-wheel drive, 4×4
ClutchDry, twin-plate
BrakesDisc brakes
PTO540/1000 rpm
SteeringFully hydraulic
Hydraulics and hitch – SPIKE TK 1054 Mechanical injection
Hydraulic flow50 L/min
Hydraulic outlets4 pairs, with float
HitchThree-point, category 2
Cab and operator station – SPIKE TK 1054 Mechanical injection
CabUpgraded raised cab with noise and vibration insulation
Air conditioningStandard
SeatGrammer, mechanical
Additional equipmentCombined dashboard with LCD display; suspended pedals; water- and dust-proof connectors
Dimensions and weights – SPIKE TK 1054 Mechanical injection
Weight3,740 kg (min.) / 4,200 kg ballasted
Dimensions (L×W×H)4570×2040×3000 mm
Track widthRear 2250–1900 mm (adjustable, 70 cm rows)
Ground clearance520 mm
Minimum turning radius5.5 m
Tyres (front / rear)12.4-24 / 16.9-34

Values come from the manufacturer's catalogue. Features not listed in the catalogue are not shown. “To be confirmed” marks data the catalogue states inconsistently; it is checked on request.
